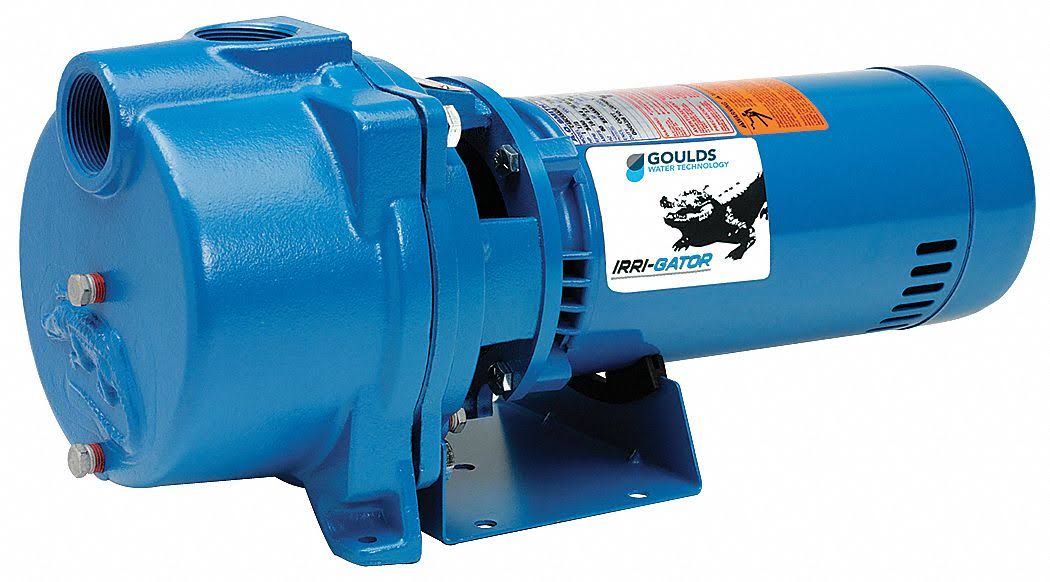

Goulds GT15 1.5 HP Self-Priming Centrifugal Pump, Single Phase, Blue

Gould's GT15 Self-Priming Pump

The Gould's GT15 features a self-priming design. allowing it to re-prime when the water level rises above the suction pipe. Its back pullout design enables easy disassembly for maintenance without disrupting the piping.

Key Features

• Motor: Two-compartment motor for easy access to wiring and replaceable components.
• Diffuser: Bolt-down diffuser with stainless wear ring for enhanced performance in abrasive conditions.
• Materials: FDA-compliant. glass-filled Lexan and Noryl for durability and abrasion resistance.
• Corrosion Resistant: Electro-coat paint applied inside and out. then baked on.
• Casing: Cast iron. four-bolt. back pull-out design with tapped openings for vacuum gauge and casing drain.
• Mechanical Seal: Carbon/ceramic faces. BUNA elastomers. 300 series stainless steel parts.

Specifications

• Pump Connections: 1-inch NPT suction and discharge
• Capacities: Up to 110 GPM at 5-foot suction lift
• Heads: Up to 128 feet
• Reprise Capabilities: Up to 25 feet suction lift
• Maximum Working Pressure: 125 PSIG
• Maximum Water Temperature: 140°F (60°C)
• Rotation: Clockwise from motor end
• Motor: NEMA standard. open drip-proof. 60 Hz. 3500 RPM. stainless steel shaft
• Power Options: 1 HP (115/230 V); 2 and 3 HP (230 V only). with built-in overload and automatic reset
